BELUGA MHS-DMA 3t VBS
MHS-DMA 3T

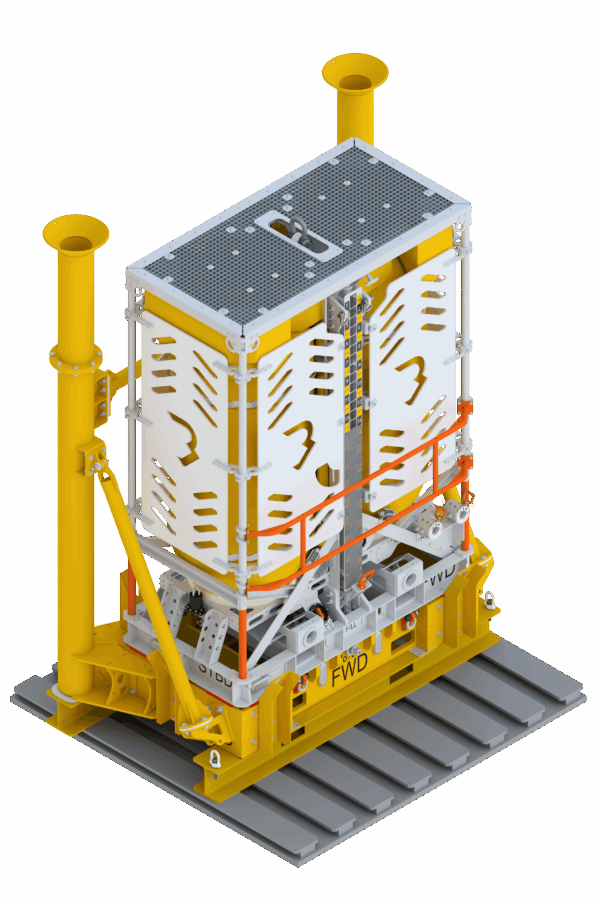

The Beluga MHS-DMA is a bespoke Clump Weight for the beluga 3T VBS units. The MHS-DMA will fit most common Module Handling Systems (MHS) found on construction and IMR vessels. Enabling Launch & Recovery of the Beluga VBS systems in high seas.
It is a compact and robust subsea lifting solution designed to meet the demanding requirements of offshore operations. The Beluga MHS-DMA is specifically designed for the Beluga 3T VBS series. Locking between VBS and DMA uses same system as our other VBS DMA solutions. Equipped with Interface frame to the vessel skidding system.
Key benefits
- Increased Hs.
- Single Lift Point.
- Same ROV interface as standard Beluga DMA.
Key features
- Protection for VBS during Launch & Recovery.
- Common interface for MHS.
- Designed for long-term submerged operations.
- Certified according to DNV 2.7-3 R60.
Technical specifications
Dimensions VBS & DMA (LxWxH)
3.45 m × 2.04 m × 4.2 m
Transport Dimensions (LxWxH)
3.45 m × 2.04 m × 3.2 m
Weight DMA (Air/Water)
3 050/2 650 kg
Material
Carbon Steel, Painted
Get in touch
Interested in the Beluga MHS-DMA 3T? Contact our team to learn more or request a quote today!
Explore the full VBS Series
Beluga
VBS 3.0 Ton Mk2
Max subsea lifting force: 3.0 Ton.
Equipped with 2 VBS pumps.
Designed for long term submerged periods.
Depth rating is 450 MSW.
Beluga
MHS-DMA 4.2T

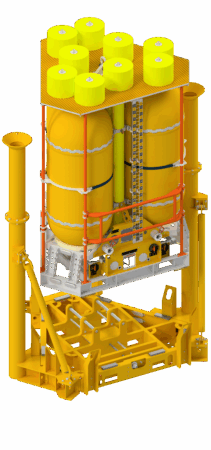

The Beluga MHS-DMA is a bespoke Clump Weight for the Beluga 4.2T VBS units. Fits most common Module Handling Systems (MHS).
