Beluga

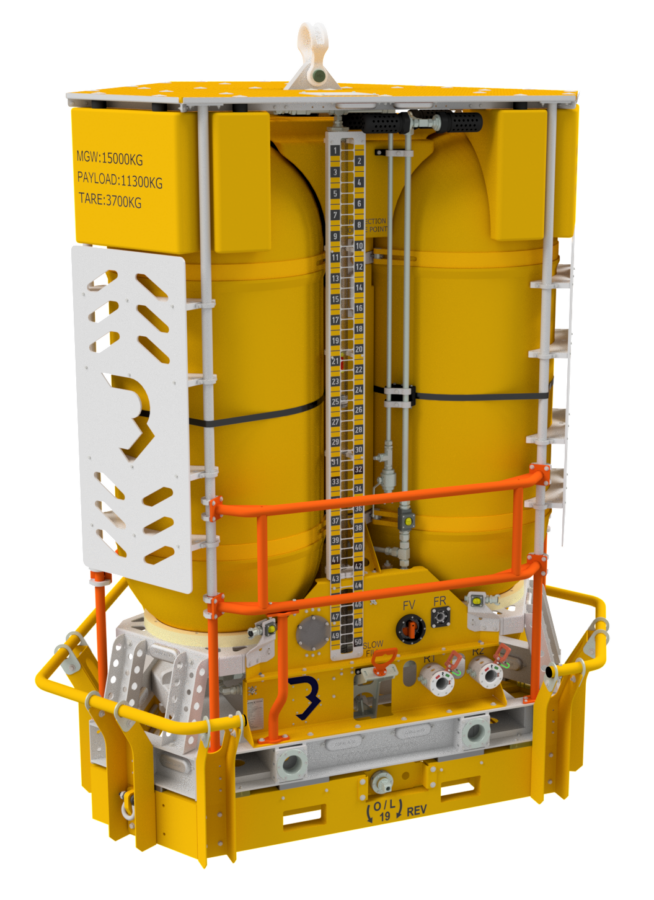

VBS 5 Ton
The Beluga VBS 5 Ton is a field proven Variable Buoyancy System design with subsea lifting capacity of 5 ton. Designed to meet the demanding requirements of subsea operations.
The Beluga 5T Variable Buoyancy System is controlled by ROV and Hydraulic powered through Valve stab system. Equipped with 2 VBS pumps for full redundancy. Designed for long term submerged periods. Available with a bespoke DMA/Clumpweight for safe Launch & Recovery. Here shown with standard DMA.
Key benefits
- VBS is 500 kg in water with full tanks.
- Subsea lifting force of 5 000 kg.
- Corrosion-resistant materials for prolonged subsea use.
Key features
- Easy to handle and transport.
- 2 off Valvestab receptacles installed.
- ROV Interfaces: Available with bespoke ROV docking, works with all Work Class ROV’s.
- Safety Features: Load indicators and failsafe mechanisms.
- Proven Design.
Technical specifications
Max Subsea Lifting Force
5000 Kg
Weight full tanks & DMA (air/water)
13000/3500 kg
Dimensions VBS & DMA (LxWxH)
3,7 m × 2.7 m × 3.9 m
Dimensions VBS only (LxWxH)
2.8 m × 2.5 m × 3.7 m
Material
GRP, Aluminum & Stainless steel
Operating Depth
450 MSW
Hydraulics requirements
30-150 bar & 30-50 l/m
Get in touch
Interested in the Beluga VBS 4.2 Ton? Contact our team to learn more or request a quote today!
Explore the full VBS Series

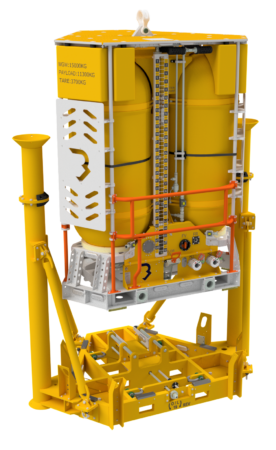

Beluga
MHS-DMA 5T
Max subsea lifting force: 4.2 Ton
Equipped with 2 VBS pumps.
Designed for long term submerged periods.
Depth rating is 450 MSW.
Beluga
VBS 4.2 Ton
Max subsea lifting force: 4.2 Ton
Equipped with 2 VBS pumps.
Designed for long term submerged periods.
Depth rating is 450 MSW.
Beluga
MHS-DMA 4.2T
The Beluga MHS-DMA is a bespoke Clump Weight for the Beluga 4.2T VBS units. Fits most common Module Handling Systems (MHS).
